Hook type blasting machine

  • Q3750 Doube hook shot blasting machine
  • Q3750 Doube hook shot blasting machine
  • Q3750 Doube hook shot blasting machine
Q3750 Doube hook shot blasting machineQ3750 Doube hook shot blasting machineQ3750 Doube hook shot blasting machine

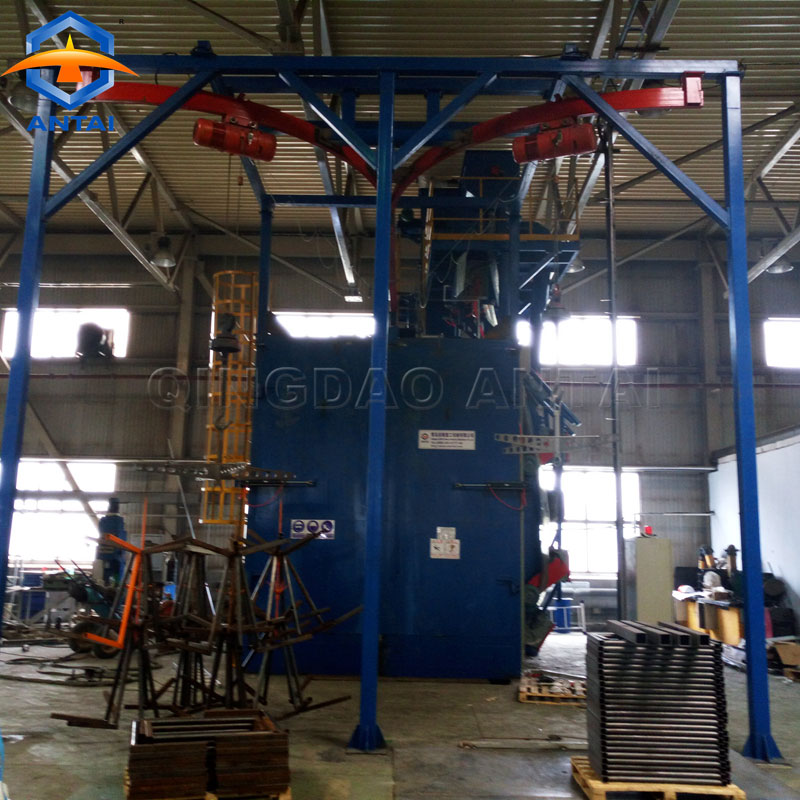

Q3750 Doube hook shot blasting machine

Product Description
Hook shot blasting machines are designed to clean parts hanging from an overhead conveyor and used for castings or large parts that cannot be tumbled. We offer various designs including flow-through, Y-track, continuous or in-line blast designs. Some advantages to our designs include: low head room required, low initial investment, complete blast coverage without damaging parts.
The door of the overhead rail sand blasting machine is opened automatically and components are loaded on to the trolley mounted hanger. The door is then closed and the blast wheel unit is operated. The abrasive at high velocity falls upon the components on the rotating hanger, hanger rotates in both clockwise & Anti-clockwise direction and definite time period and blast clean the components. After the blast cleaning cycle is over, the blast wheel is shut off and door is opened automatically and hanger moves out for unloading of components. At the same time another hanger on the Y-track moves in for blasting purpose.

Range of Application
Desanding and final blast cleaning of castings (especially brittle parts and parts susceptible to impact damage)
Descaling of forgings or hardened parts
Derusting, roughening, finishing, sweeping
Shot peening for surface hardening
Deburring of plastic parts

Product Advantage
Compact design and easy operation
High blast cleaning performance
Economic abrasive consumption, reliable cleaning and dust collection
Broad range of machine types and options
Easy integration into production lines
High operational safety
Low maintenance, maintenance-friendly design


Model

Work piece cleaned

Load capacity

Blastng capacity

Ventilation capacity

Motor power

Outline dimensions


mm

kg

Kg/min

M3/h

kw

mm

Q376

Ø600*1100

500

2*120

5000

19

4429*2850*3443

Q378

Ø800*1500

1000

2*200

8000

32.5

4325*2660*5009

Q3710

Ø900*1600

1000

2*250

9000

36.55

5047*3850*5156

QD3710

Ø900*1600

1000

2*250

9000

39.65

5844*2742*5716

Q3720

Ø1400*2300

2000

3*250

15000

61.27

6110*3599*7842

Q3730

Ø1600*2300

3000

3*250

15000

64.4

7085*4650*8652

Q3750

Ø1800*2500

5000

4*250

18000

78.4

7062*5460*8652

Q3780

Ø2000*3000

8000

4*250

20000

81.5

8050*6400*8526
